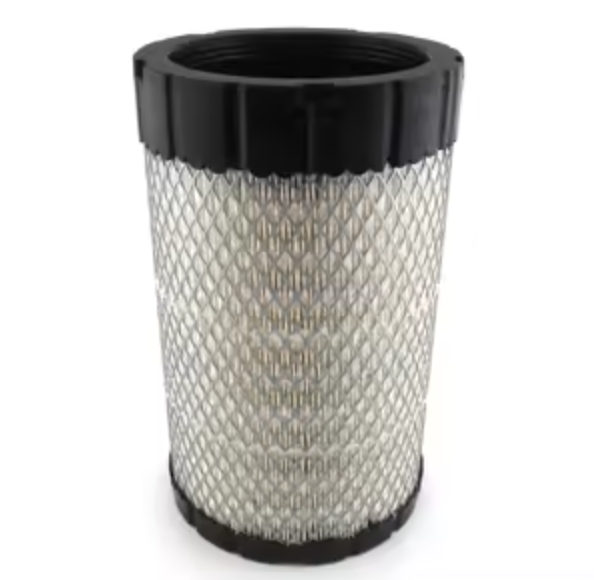

EE 861 Air Filter

EE-861 High-Performance Air Filter (Replaces 1109060-DD051)

Ensure your heavy-duty engine breathes clean air with the EE-861 Air Filter. Specifically designed as a direct replacement for the FAW 1109060-DD051 OEM part, this filter is built to handle the high-volume air intake requirements of modern diesel engines.

By utilizing advanced micro-glass or high-density pleated media, the EE-861 traps over 99% of airborne contaminants—including fine dust and soot—preventing premature engine wear and maintaining optimal fuel combustion.

Key Performance Features:

• Industrial Strength Filtration: Multi-stage media designed to withstand the high suction of turbocharged engines.

• Reinforced Structure: Features a heavy-duty steel mesh outer casing to prevent collapsing under extreme pressure.

• Precision Air-Tight Seal: High-quality polyurethane (PU) gaskets ensure a perfect fit in the air box, preventing "dust dusting" or air bypass.

• Engine Protection: Extends the life of your turbocharger and piston rings by keeping the intake system free of abrasive particles.

Verified Compatibility & Cross-Reference

The EE-861 is a verified replacement for the 1109060-DD051 (often found on FAW Jiefang series trucks) and can be used as an equivalent to several other major brand numbers.

Primary Vehicle Applications

This filter is a standard requirement for heavy-duty commercial vehicles and power generation equipment, specifically within the Chinese and Asian markets:

• FAW Jiefang Series: J5, J5P, and J6 models (Commonly the 240HP, 260HP, and 280HP variants).

• FAW CA1130 / CA1141 / CA1160 Trucks.

• XCMG & Sany Machinery: Various cranes and excavators utilizing FAW or Deutz-type engines.

Technical Specifications

• Filter Type: Cylindrical Air Filter Element

• Outer Diameter: Approx. 235mm – 240mm

• Inner Diameter: Approx. 130mm

• Overall Height: Approx. 395mm – 400mm
