EE 843 Air Filter

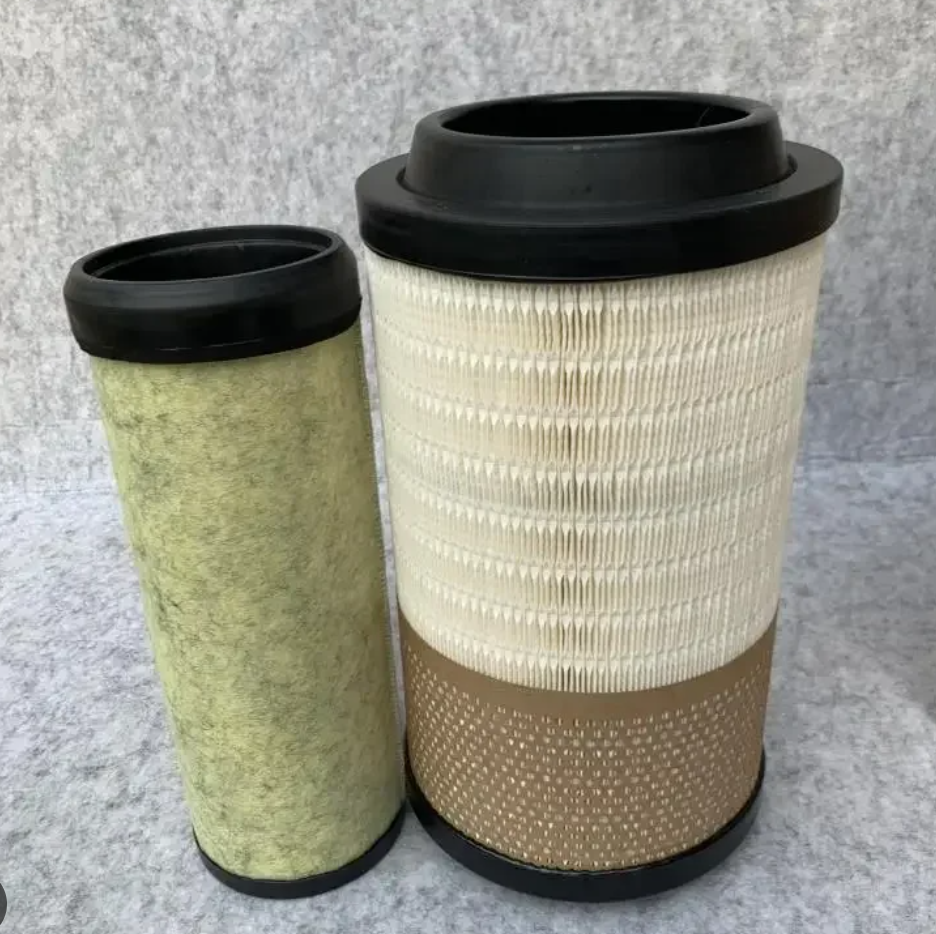

EE-843 Heavy-Duty Air Filter (Replaces FAW 1109060-D539E)
Protect your engine from the harshest road and worksite conditions with the EE-843 Air Filter. Specifically designed for the FAW (First Automobile Works) light and medium-duty truck range, this filter provides the high-capacity dust-holding capability required for industrial and commercial performance.
The EE-843 features a precision-pleated filtration media that maximizes surface area, ensuring a steady flow of clean air to the intake. This results in better fuel combustion, lower emissions, and a significant reduction in engine wear.
Key Performance Features:
Industrial Grade Media: Multi-layered synthetic fibers capture microscopic dust and soot before they reach the cylinders.
Axial/Radial Seal Technology: Engineered with high-quality rubber gaskets to ensure a 100% airtight seal within the housing.
Corrosion-Resistant Housing: Reinforced with a steel inner and outer mesh to prevent filter collapse under high-vacuum pressure.
Extended Service Intervals: Built to handle high-debris environments, reducing the frequency of maintenance stops.
Verified Compatibility & Cross-Reference
The EE-843 is the verified equivalent to the FAW 1109060-D539E (also known in some regions as the K2032 series).
Manufacturer | Part Number (Replaces) |
FAW (OEM) | 1109060-D539E / 1109060D539E |
FAW Qingdao | 1109060-D539 / 1109070-D539 |
K-Filter | K2032 |
Sakura | A-33050 (Compatible Series) |
HIFI Filter | SA 17454 |
Fleetguard | AF27681 (Equivalent Spec) |
Primary Vehicle Applications
This filter is a standard replacement for the following FAW and Jiefang commercial vehicles:
FAW Tiger V (Tiger 5): Light-duty truck series.
FAW J6F Series: Light-duty delivery and logistics trucks.
FAW Tiger VH: 4x2 and 6x2 medium truck configurations.
FAW 140 / 160 HP Engines: Commonly used in regional delivery and vocational trucks.
Technical Specifications
Filter Type: Cylindrical Air Element (Outer)
Outer Diameter: Approx. 200mm
Inner Diameter: Approx. 105mm
Height: Approx. 315mm – 320mm
End Cap Material: Polyurethane (Soft Seal)
Maintenance Tip: For trucks operating in construction or rural areas, we recommend blowing out the filter with low-pressure compressed air every 5,000 km and performing a full replacement every 15,000 km to ensure maximum turbocharger protection.
