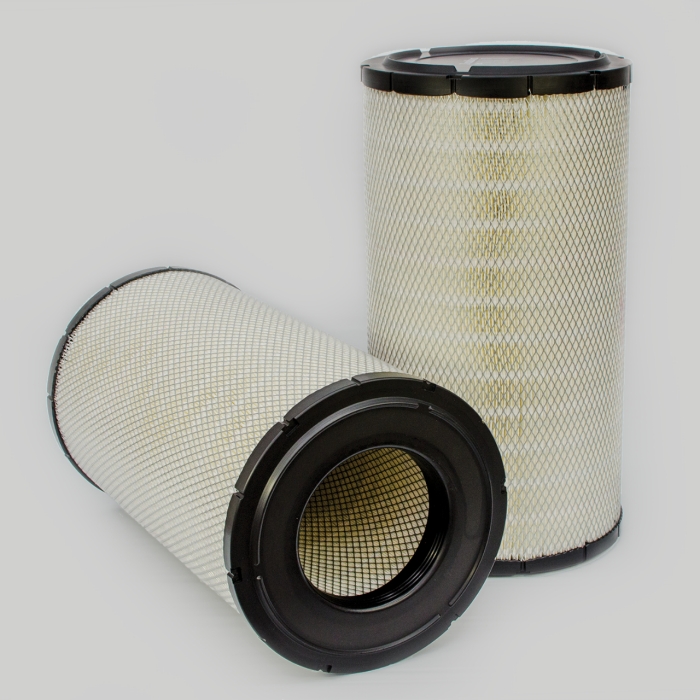

EE 816 Air Filter

EE-816 High-Performance Air Filter (Replaces IH 275809A1)

Ensure your heavy-duty machinery operates with maximum power and protection with the EE-816 Air Filter. This premium radial-seal filter is engineered to meet the extreme air intake requirements of agricultural and construction equipment.

Designed specifically as a direct replacement for Case IH 275809A1, the EE-816 utilizes advanced synthetic-blend media to trap 99.9% of airborne contaminants, including dust, soot, and pollen, before they can cause internal engine wear.

Key Features:

• Industrial-Grade Filtration: High-density pleated media offers maximum surface area for longer service intervals.

• Radial Seal Technology: Features a high-quality urethane seal that stays flexible even in extreme temperatures, preventing "dirty air" bypass.

• Structural Integrity: Heavy-duty inner and outer metal cages prevent filter collapse under high-vacuum conditions.

• Engine Protection: Optimized for turbocharged engines where consistent airflow is critical for fuel efficiency and cooling.

Verified Compatibility & Cross-Reference

The EE-816 is a highly versatile filter used in global agricultural and industrial sectors. It is verified to replace the following manufacturer part numbers:

Primary Equipment Applications

This filter is essential for a wide range of "big-brand" tractors and heavy equipment:

• Case IH: Various tractors and combines requiring the 275809A1 spec.

• John Deere: Forestry and agricultural equipment (Cross-ref F434394).

• Kobelco / Hitachi: Selected excavators and earthmovers.

• Timberjack: Specialized logging equipment and harvesters.

Technical Specifications

• Filter Type: Primary Radial Seal Air Filter

• Outer Diameter: ~163mm (6.42")

• Inner Diameter: ~91mm (3.58")

• Overall Height: ~348mm (13.7")

Maintenance Tip: In high-dust environments (such as harvesting or excavation), we recommend checking the EE-816 every 250 hours. A restricted air filter can lead to increased fuel consumption and elevated exhaust temperatures (EGTs), which can shorten turbocharger life.
