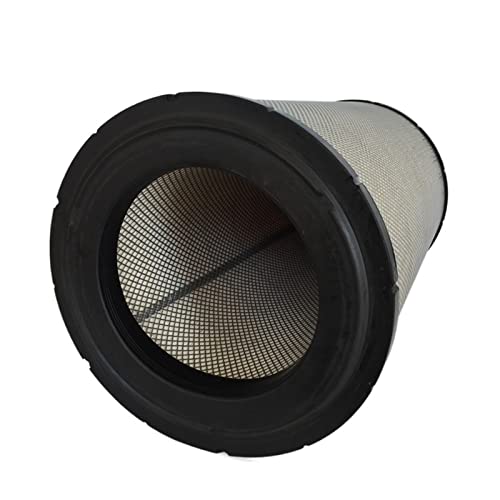

EE 815 Air Filter

EE-815 Heavy-Duty Primary Air Filter (Replaces CAT 246-5009)

Protect your high-value heavy machinery with the EE-815 Primary Air Filter. Engineered to handle the extreme intake demands of large-scale industrial engines, this radial-seal filter provides a critical line of defense against dust, grit, and airborne contaminants.

Specifically designed as a replacement for Caterpillar 246-5009, the EE-815 ensures maximum airflow without compromising filtration efficiency, helping to maintain horsepower and fuel economy in the most punishing work environments.

Key Performance Features:

• Radial Seal Technology: Features a high-quality urethane seal that provides a consistent, leak-proof bond even under high vibration.1

• Large Capacity Media: Multi-layered pleated paper design maximizes the surface area for superior dirt-holding capacity.

• Structural Integrity: Reinforced with a heavy-duty inner and outer metal cage to prevent pleat collapse or "bundling" during high-pressure intake.

• Precision Fit: Built to the exact dimensions of the OEM housing for easy, tool-free installation.

Verified Compatibility & Cross-Reference

The EE-815 is a direct replacement for the Caterpillar 246-5009 and is compatible with several other major filter brands used in mining and construction.

Industrial & Heavy Equipment Applications

This filter is a standard component for massive power systems and off-highway vehicles, including:

• Caterpillar Off-Highway Trucks: 770, 770G, 772, 772G, 773F, 775F, 777F.2

• CAT Mining & Earthmoving: D10R Dozer, 854G Wheel Dozer, 6020B Hydraulic Shovel.3

• Industrial Engines: CAT C13, C15, C18, C27, and C32 series.4

• Agriculture & Harvesting: New Holland FR and FX series forage harvesters; John Deere 9880 STS combines.5

Technical Specifications

• Filter Type: Primary Radial Seal Air Filter6

• Overall Height: 631 mm (24.84")7

• Outer Diameter: 362.8 mm (14.28")8

• Inner Diameter: 227 mm (8.94")

Service Note: The EE-815 is the Primary (Outer) filter. For complete engine protection, it is highly recommended to inspect the Secondary (Inner) filter (OEM 246-5010) every time you replace the primary unit.
